Bolting Tools

Reducer insert

Reducer inserts for low profile hydraulic wrench
It’s raw material is super high strength steel
It adopts standard heat treatment and ensures life long warranty
We can customize all types of the optional reducer inserts

Model:
XCTD
Brand:
KASHON

Quantity:




Inquire Add to Basket

Parameters

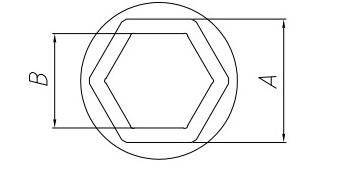

Power Head	Rachet Link	Nut Size (mm)	Optional Reducer Insert						Holding Ring
Power Head	Rachet Link	Nut Size (mm)	Model	A/B (mm)	Model	A/B (mm)	Model	A/B (mm)	Holding Ring
2XLCT	2XCTD-50	50	2G5041	50/41	2G5036	50/36	2G5032	50/32	H-50
	2XCTD-46	46	2G4636	46/36	2G4632	46/32	2G4630	46/30	H-46
	2XCTD-41	41	2G4132	41/32	2G4130	41/30	2G4127	41/27	H-41
	2XCTD-36	36	2G3630	36/30	2G3627	36/27			H-36
	2XCTD-32	32	2G3227	32/27					H-32
	2XCTD-30	30
	2XCTD-27	27
4XLCT	4XCTD-65	65	4G6555	65/88	4G6550	65/50	4G6546	65/46	H-65
	4XCTD-60	60	4G6050	60/50	4G6046	60/46	4G6041	60/41	H-60
	4XCTD-55	55	4G5546	55/46	4G5541	55/41	4G5536	55/36	H-55
	4XCTD-50	50	4G5041	50/41	4G5036	50/36	4G5032	50/32	H-50
	4XCTD-46	46	4G4636	46/36	4G4632	46/32	4G4630	46/30	H-46
	4XCTD-41	41	4G4132	41/32	4G4132	41/32	4G4127	41/27	H-41
	4XCTD-36	36	4G3630	36/30	4G3627	36/27			H-36
	4XCTD-30	32	4G3227	32/27					H-32
	4XCTD-36	30
	4XCTD-27	27
8XLCT	8XCTD-90	90	8G9080	90/80	8G9075	90/75	8G9070	90/70	H-90
	8XCTD-85	85	8G8575	85/75	8G8570	85/70	8G8565	85/65	H-85
	8XCTD-80	80	8G8070	80/70	8G8065	80/65	8G8060	80/60	H-80
	8XCTD-75	75	8G7565	75/65	8G7560	75/60	8G7555	75/55	H-75
	8XCTD-70	70	8G7060	70/60	8G7055	70/55	8G7050	70/50	H-70
	8XCTD-65	65	8G6555	65/55	8G6550	65/50	8G6546	65/46	H-65
	8XCTD-60	60	8G6050	60/50	8G6046	60/46			H-60
	8XCTD-55	55	8G5546	55/46	8G5541	55/41			H-55
	8XCTD-50	50
14XLCT 18XLCT	18XCLTD-135	135	18G135130	135/130	18G135125	135/125	18G135120	135/120	H-135
	18XCLTD-130	130	18G130125	130/125	18G130120	135/120	18G130115	130/115	H-130
	18XCLTD-120	120	18G120115	120/115	18G120110	135/110	18G120105	120/105	H-120
	18XCLTD-115	115	14G115105	115/105	14G115100	115/100	14G11595	115/95	H-115
	18XCLTD-110	110	14G110100	110/100	14G11095	110/95	14G11090	110/90	H-110
	18XCLTD-105	105	14G10595	105/95	14G10590	105/90	14G10585	105/85	H-105
	18XCLTD-100	100	14G10095	100/95	14G10085	100/85	14G10080	100/80	H-100
	18XCLTD-95	95	14G9585	95/85	14G9580	95/80	14G9575	95/75	H-95
	18XCLTD-90	90	14G9080	90/80	14G9075	90/75	14G9070	90/70	H-90
	18XCLTD-85	85	14G9575	95/75	14G8570	85/70	14G8565	85/65	H-85
	18XCLTD-80	80	14G8070	80/70	14G8060	80/60			H-80
	18XCLTD-75	75	14G7565	75/85					H-75
	18XCLTD-70	70
	18XCLTD-65	65
30XLCT	30XCTD-155	155	30155145	155/145	30G155130	155/130	30G155120	155/120	H-155
30XLCT	30XCTD-145	145	30G145130	145/130	30G145120	145/120	30G145115	145/115	H-145
