Bolting Tools

Hydraulic bolt tensioner

High precision, fast speed and safe
Wide range application for various bolts
Simply to operated
Accurate and Fast - Simultaneous multiple tensioning
Reliable- Robust Cylinders designed through multiple engineering calculations
Quality and Safe - high strengths materials of aircraft grade alloys
Quick and Easy - Incorporating quick disconnects nipples
Wide tooling range for different bolt/stud sizes

Model:
KS-ST
Brand:
KASHON

Quantity:




Inquire Add to Basket

Parameters

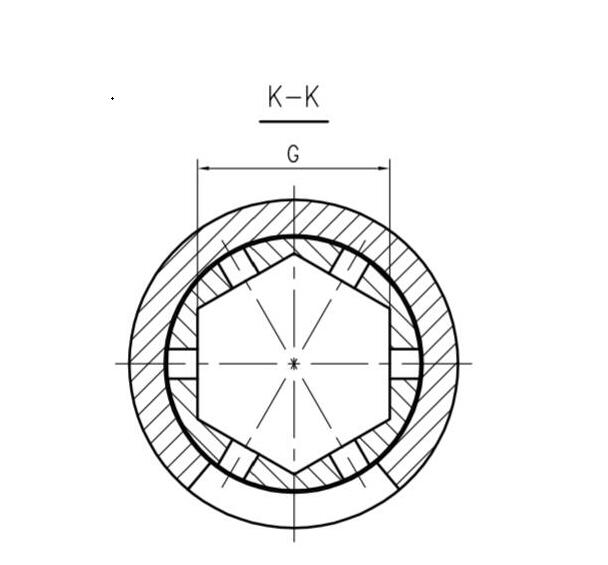

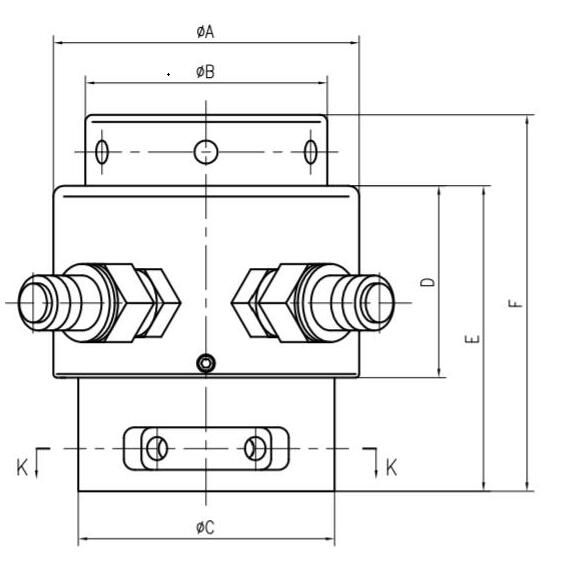

Model	Thread	Max. Tension Force	Effective Area	A	B	C	D<	E	F	G	Max. Stroke
Model	Thread	kn	mm2	mm	mm	mm	mm	mm	mm	mm	mm
KS-ST1	M24	282.00	1,885.00	86.00	68.00	68.00	54.00	83.00	103.00	37.00	8.00
KS-ST1	M27	282.00	1,885.00	86.00	68.00	72.00	54.00	86.00	106.00	42.00	8.00
KS-ST2	M24	452.00	3,016.00	112.00	92.00	75.00	60.00	89.00	111.00	37.00	10.00
	M27	452.00	3,016.00	112.00	92.00	75.00	60.00	92.00	114.00	42.00	10.00
	M30	452.00	3,016.00	112.00	92.00	80.00	60.00	95.00	117.00	47.00	10.00
	M33	452.00	3,016.00	112.00	92.00	85.00	60.00	98.00	120.00	51.00	10.00
	M36	452.00	3,016.00	112.00	92.00	90.00	60.00	101.00	123.00	56.00	10.00
KS-ST3	M39	671.00	4,477.00	134.00	107.00	95.00	65.00	101.00	126.00	51.00	10.00
	M42	671.00	4,477.00	134.00	107.00	100.00	65.00	104.00	129.00	56.00	10.00
	M45	671.00	4,477.00	134.00	107.00	105.00	65.00	107.00	132.00	61.00	10.00
	M48	671.00	4,477.00	134.00	107.00	110.00	65.00	111.00	135.00	66.00	10.00
KS-ST4	M39	1,009.00	6,730.00	152.00	114.00	112.00	65.00	107.00	129.00	61.00	10.00
	M42	1,009.00	6,730.00	152.00	114.00	115.00	65.00	110.00	132.00	66.00	10.00
	M45	1,009.00	6,730.00	152.00	114.00	120.00	65.00	113.00	135.00	71.00	10.00
	M48	1,009.00	6,730.00	152.00	114.00	125.00	65.00	116.00	138.00	76.00	10.00
	M48	1,009.00	6,730.00	152.00	114.00	125.00	65.00	116.00	138.00	76.00	10.00
KS-ST5	M52	1,538.00	10,254.00	195.00	147.00	148.00	69.00	123.00	155.00	81.00	10.00
	M56	1,538.00	10,254.00	195.00	147.00	153.00	69.00	127.00	159.00	86.00	10.00
	M60	1,538.00	10,254.00	195.00	147.00	158.00	69.00	131.00	163.00	91.00	10.00
	M64	1,538.00	10,254.00	195.00	147.00	163.00	69.00	135.00	167.00	96.00	10.00
	M68	1,538.00	10,254.00	195.00	147.00	168.00	69.00	139.00	171.00	101.00	10.00
KS-ST6	M72	2,544.00	16,965.00	255.00	194.00	191.00	78.00	156.00	196.00	106.00	12.00
	M76	2,544.00	16,965.00	255.00	194.00	196.00	78.00	160.00	200.00	111.00	12.00
	M80	2,544.00	16,965.00	255.00	194.00	200.00	78.00	164.00	204.00	116.00	12.00
	M85	2,544.00	16,965.00	255.00	194.00	204.00	78.00	169.00	209.00	121.00	12.00
	M90	2,544.00	16,965.00	255.00	194.00	214.00	78.00	174.00	214.00	131.00	12.00
KS-ST7	M90	3,216.00	21,441.00	280.00	213.00	225.00	82.00	175.00	209.00	131.00	12.00
	M95	3,216.00	21,441.00	280.00	213.00	235.00	82.00	180.00	214.00	136.00	12.00
	M100	3,216.00	21,441.00	280.00	213.00	245.00	82.00	186.00	220.00	146.00	12.00

If the standard hydraulic bolt tensioner can not suit your working condition, please feel free
to contact us and our technical team will offer you a solution, thanks!

Model	Thread	Max. Tension Force	Effective Area	A	B	C	D<	E	F	G	Max. Stroke
KS-ST1	M24	282.00	1,885.00	86.00	68.00	68.00	54.00	83.00	103.00	37.00	8.00
M27	282.00	1,885.00	86.00	68.00	72.00	54.00	86.00	106.00	42.00	8.00
KS-ST2	M24	452.00	3,016.00	112.00	92.00	75.00	60.00	89.00	111.00	37.00	10.00
M27	452.00	3,016.00	112.00	92.00	75.00	60.00	92.00	114.00	42.00	10.00
M30	452.00	3,016.00	112.00	92.00	80.00	60.00	95.00	117.00	47.00	10.00
M33	452.00	3,016.00	112.00	92.00	85.00	60.00	98.00	120.00	51.00	10.00
M36	452.00	3,016.00	112.00	92.00	90.00	60.00	101.00	123.00	56.00	10.00
KS-ST3	M39	671.00	4,477.00	134.00	107.00	95.00	65.00	101.00	126.00	51.00	10.00
M42	671.00	4,477.00	134.00	107.00	100.00	65.00	104.00	129.00	56.00	10.00
M45	671.00	4,477.00	134.00	107.00	105.00	65.00	107.00	132.00	61.00	10.00
M48	671.00	4,477.00	134.00	107.00	110.00	65.00	111.00	135.00	66.00	10.00
KS-ST4	M39	1,009.00	6,730.00	152.00	114.00	112.00	65.00	107.00	129.00	61.00	10.00
M42	1,009.00	6,730.00	152.00	114.00	115.00	65.00	110.00	132.00	66.00	10.00
M45	1,009.00	6,730.00	152.00	114.00	120.00	65.00	113.00	135.00	71.00	10.00
M48	1,009.00	6,730.00	152.00	114.00	125.00	65.00	116.00	138.00	76.00	10.00
M48	1,009.00	6,730.00	152.00	114.00	125.00	65.00	116.00	138.00	76.00	10.00
KS-ST5	M52	1,538.00	10,254.00	195.00	147.00	148.00	69.00	123.00	155.00	81.00	10.00
M56	1,538.00	10,254.00	195.00	147.00	153.00	69.00	127.00	159.00	86.00	10.00
M60	1,538.00	10,254.00	195.00	147.00	158.00	69.00	131.00	163.00	91.00	10.00
M64	1,538.00	10,254.00	195.00	147.00	163.00	69.00	135.00	167.00	96.00	10.00
M68	1,538.00	10,254.00	195.00	147.00	168.00	69.00	139.00	171.00	101.00	10.00
KS-ST6	M72	2,544.00	16,965.00	255.00	194.00	191.00	78.00	156.00	196.00	106.00	12.00
M76	2,544.00	16,965.00	255.00	194.00	196.00	78.00	160.00	200.00	111.00	12.00
M80	2,544.00	16,965.00	255.00	194.00	200.00	78.00	164.00	204.00	116.00	12.00
M85	2,544.00	16,965.00	255.00	194.00	204.00	78.00	169.00	209.00	121.00	12.00
M90	2,544.00	16,965.00	255.00	194.00	214.00	78.00	174.00	214.00	131.00	12.00
KS-ST7	M90	3,216.00	21,441.00	280.00	213.00	225.00	82.00	175.00	209.00	131.00	12.00
M95	3,216.00	21,441.00	280.00	213.00	235.00	82.00	180.00	214.00	136.00	12.00
M100	3,216.00	21,441.00	280.00	213.00	245.00	82.00	186.00	220.00	146.00	12.00
