Bolting Tools

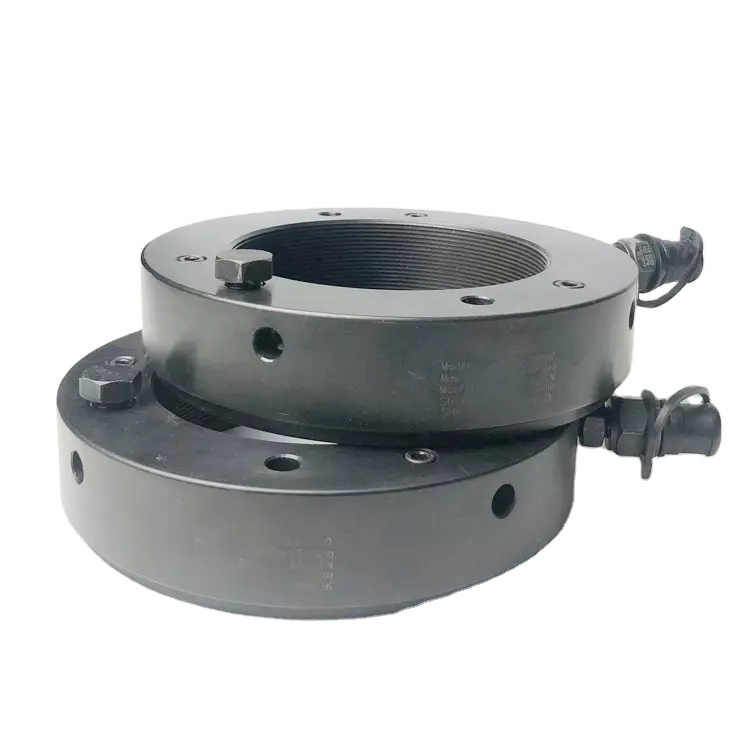

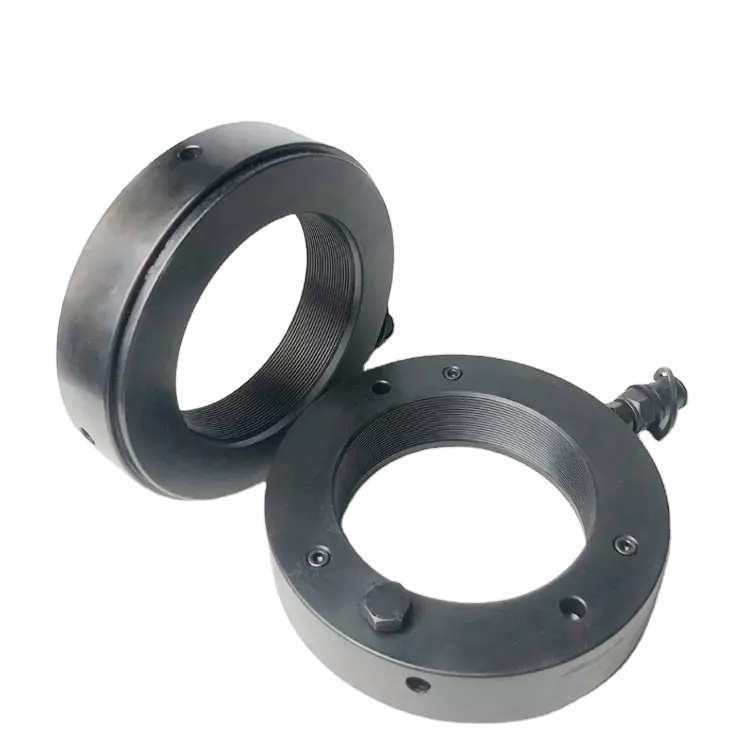

Hydraulic Nut

Commonly used in bearings, flywheels, propellers and other workpiece presses hydraulic tools.
With the resulting top thrust is smooth, no impact, the process does not hurt the workpiece and other characteristics. Through the hydraulic nut inner thread, which can be installed in the shaft parts, the piston under the action of 700bar hydraulic pressure to push the workpiece to the installation position.

Model:
KSNM
Brand:
KASHON

Quantity:




Inquire Add to Basket

Parameters

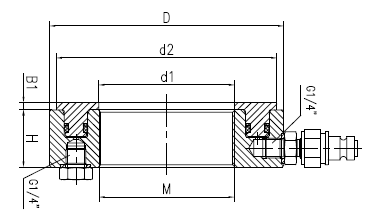

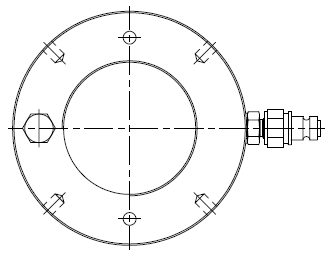

MODEL	THREAD M	DIA.D	DIA.d1	DIA.d2	HEIGHT H	B1	STROKE	EFFECTIVE AREA mm2	WEIGHT Kg
KSNM50	M50x1.5	114	50.5	104	38	4	5	3376	2.7
KSNM60	M60x2	125	60.5	115	38	5	5	4239	2.8
KSNM70	M70x2	135	70.5	127	38	5	5	4710	3.2
KSNM80	M80x2	146	80.5	137	38	5	5	5181	3.7
KSNM90	M90x2	156	90.5	147	38	5	5	5652	4
KSNM100	M100x2	166	100.5	158	38	6	5	5987	4.4
KSNM110	M110x2	178	110.5	169	38	6	5	6286	4.95
KSNM120	M120x2	188	120.5	179	38	6	5	8568	5.25
KSNM130	M130x2	198	130.5	190	38	6	5	7165	5.65
KSNM140	M140x2	208	140.5	200	39	7	5	7605	6
KSNM150	M150x2	220	150.5	211	39	7	6	7736	6.6
KSNM160	M160x3	232	160.5	224	40	7	6	8002	7.6
KSNM170	M170x3	244	170.5	235	41	7	6	8669	8.4
KSNM190	M190x3	270	191	259	42	8	8	9266	10.5
KSNM200	M200x3	282	201	271	43	8	8	8612	11.5
KSNM210	Tr210x4	294	212	282	44	8	9	11728	12.5
KSNM220	Tr220x4	306	222	293	44	8	9	11815	13.5
KSNM230	Tr230x4	318	232	305	45	8	9	12270	15
KSNM250	Tr250x4	342	252	329	46	9	10	13317	17
KSNM280	Tr280x4	380	282	363	49	9	12	14683	22
KSNM300	Tr300x4	404	302	386	51	10	13	15640	25
KSNM400	Tr400x4	522	402	499	60	11	17	20602	45.5
KSNM500	Tr500x4	636	502	609	67	12	19	24337	70
KSNM600	Tr600x4	748	602	721	73	13	23	28274	100
KSNM710	Tr710x4	870	712	840	78	15	25	30730	135
KSNM800	Tr800x4	965	802	936	80	16	25	31770	161
KSNM900	Tr900x4	1075	902	1043	86	17	30	32848	205
