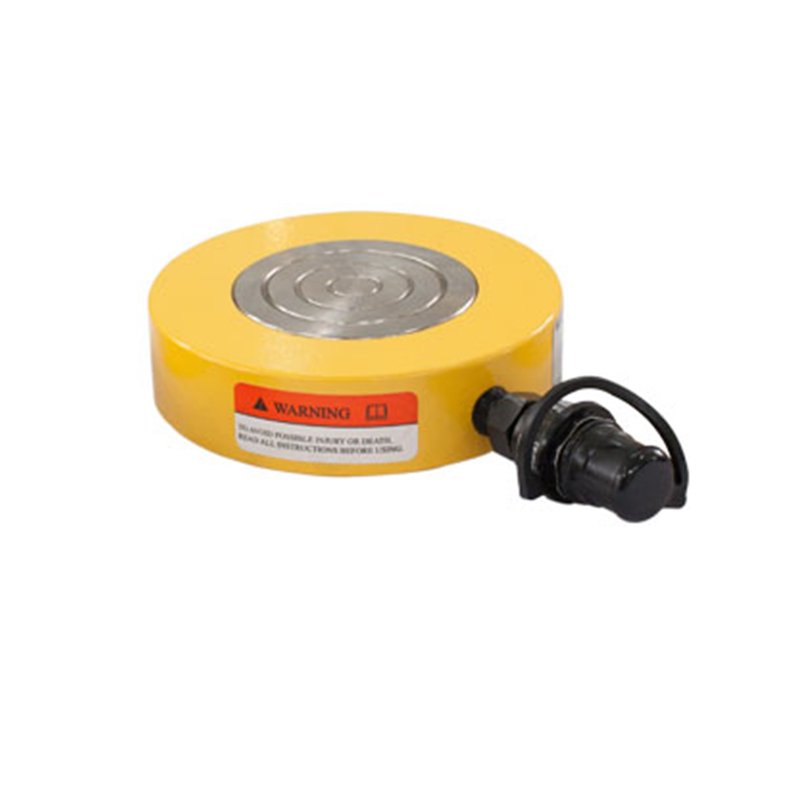

1500bar low height hydraulic cylinder jack

The top end is provided with an elastic sealing piece to avoid the impurity into the cylinder, extending cylinder life
Top finite overflow port, When the plunger over stroke, automatic overflow, safe and convenient
Compared with the same kind cylinder, the same closed height, there is a longer lift stroke
G1/4” coupler and dust cap included on all models.
  • KS-STC

  • KASHON

Quantity:
sharethis sharing button

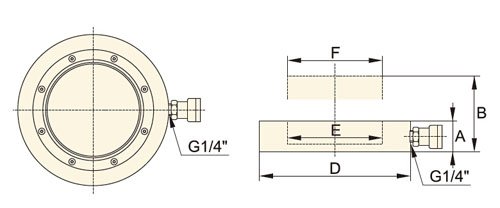

syt (1)

Model Capacity Max. Working Pressure Closed Height A Stroke Effective Area Oil Capacity Outside Diameter D Plunger Diameter F CouplerHeight Coupler Weight
(T) (Bar) (mm) (mm) (cm2) (cm3) (mm) (mm) (mm)
(kg)
KS-STC-0510 5 1500 30 10 3.46 3.5 60 21 14 G1/4" 0.17
KS-STC-01010 10 1500 30 10 7.06 7.1 70 30 14 G1/4" 1.1
KS-STC-02510 25 1500 30 10 17.34 17.3 90 47 14 G1/4" 1.5
KS-STC-05010 50 1500 30 10 38.46 38.5 118 70 14 G1/4" 2.6
KS-STC-10010 100 1500 33 10 69.36 69.4 152 94 14 G1/4" 4.3
KS-STC-15010 150 1500 34 10 105.62 105.6 180 116 14 G1/4" 6.8
KS-STC-20010 200 1500 35 10 136.77 136.8 204 132 14 G1/4" 9
